Vacuum insulation panel

Thermal Material Polyurethane Board Insulation for Wall,freezer and Cooler Box Other Heat Insulation Materials Cold Insulation Insulation board

Technical Specifications:Item nameSpliceable Design VPU BoardThickness10mm to 30mm;customizableCorel materialFiberglassStructureAluminum foil+glassfiber+aluminum foilSizeAccept custom Maximum size:100x160cmSurface colourSilverThermal conductivity ≤0.0025W/mkCompressive

External Dimension：30X30X3CM
Internal Dimension： 30X30X3CM
Capacity:
Weight: 500g

Description
Message

Technical Specifications:

Item name	Spliceable Design VPU Board
Thickness	10mm to 30mm;customizable
Corel material	Fiberglass
Structure	Aluminum foil+glassfiber+aluminum foil
Size	Accept custom Maximum size:100x160cm
Surface colour	Silver
Thermal conductivity	≤0.0025W/mk
Compressive strength	≥0.15MPa
Working temperature	-70 - 100℃

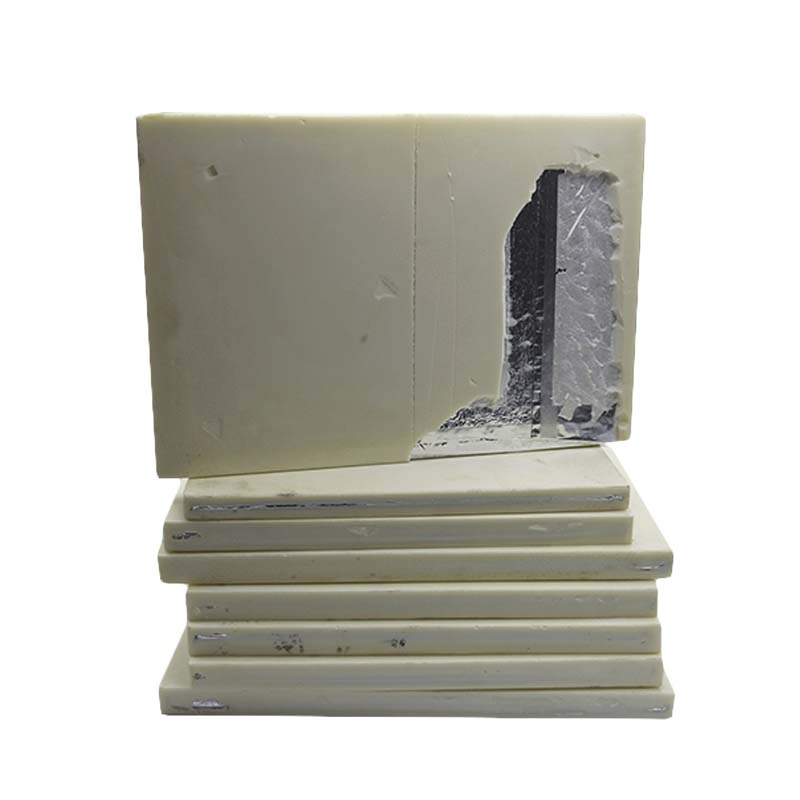

Spliceable VPU board, with special design, can be spliced into insulation box.Adopt seamless stitching technology to improve the insulation performance.And Save transportation cost.

Applications:

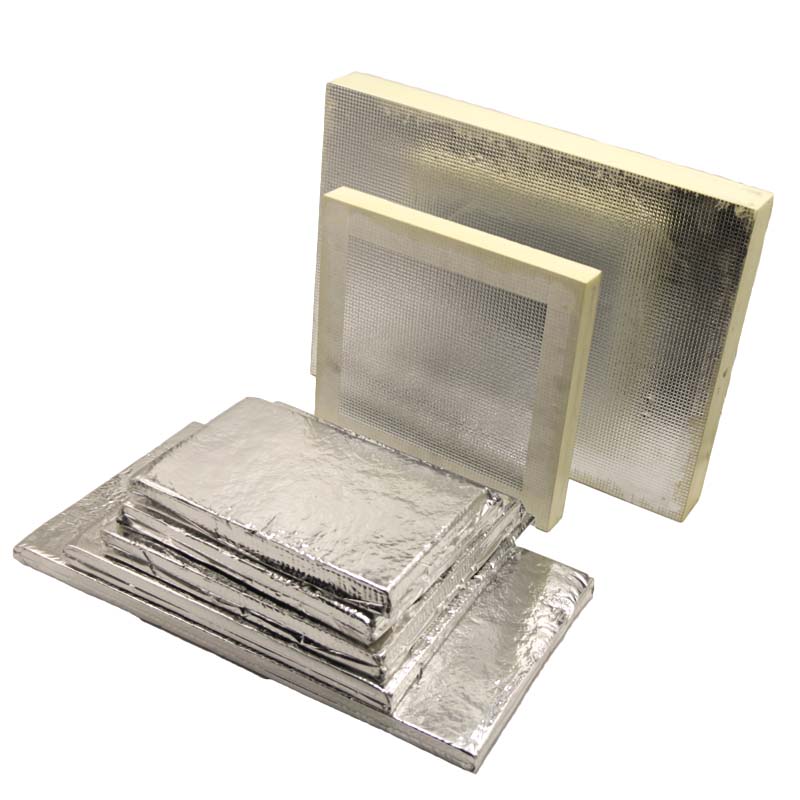

PU+VIP panel can be widely use in household refrigerator, yacht refrigerator, mini refrigerator, car refrigerator, cryogenic freezer, electric water heater, vending machines, freezers, cold storage container, building wall thermal insulation and LNG storage and transportation, etc.

Cooler box with PU- VIP can keep box temperature 2C-8C for 72 hours,even for a longer time.
