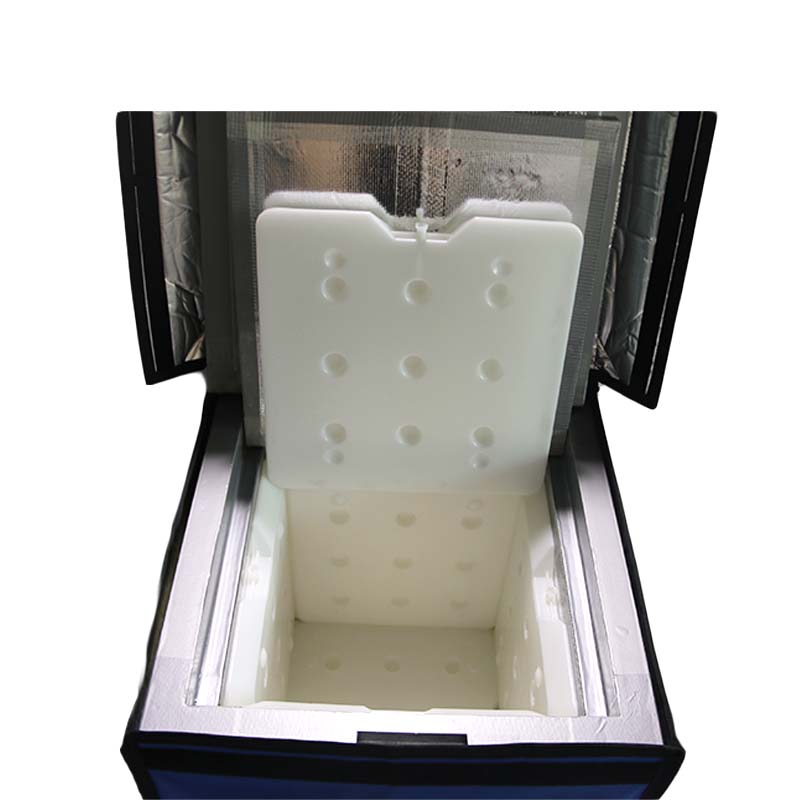

This is a Available Volume 27 L cooler box, outer material is PE plastic or Oxford bag, and internal material is PU or VPU Splicing box,The combination of themcan keep your contents cold for more than 72 h.PU or VPU provide energy efficiency and space benefits for home appliances,
This is a Available Volume 27 L cooler box, outer material is PE plastic or Oxford bag, and internal material is PU or VPU Splicing box, The combination of them can keep your contents cold for more than 72 h.PU or VPU provide energy efficiency and space benefits for home appliances, temperature-controlled packaging, refrigerated transportation systems and any other applications that require low energy loss from heat transfer.
| Item | Specification | With cold plate | Material |
BWX-27L | External size: 460x460x480mm Internal size: 350x350x350mm Capacity :42L | Inside size : 300x300x300mm Avaliable Capacity :27L | Outside : Oxford bag or PE box Inside : PU or VPU Recommend According to demands |
Instructions for use
The First Step : Freeze PCM in a at 0 degrees or less freezer for at least 10 hours to ensure complete freezing. ( At the same time, if you need better cooling conditions, please also pre-cool the insulation cooler Box)
The Second Step :Take out the Frozen PCM and place it around the Insulation box and release cool about half an hour
The Third Step : Put in medicine,vaccine ,blood that needs to be cold storage, the last , place the top PCM and Cover the lid tightly.
More Specification recommend :
| Item | Specification | With PCM | Material |
BWX-8L | External size: 380x380x380mm Internal size: 260x260x260mm Capacity :17L | Inside size : 200x200x200mm Avaliable Capacity :8L | Outside : Oxford bag or PE box Inside : PU or VPU |
BWX-50L | External size: 545x545x545mm Internal size: 435x435x435mm Capacity :82L | PCM:42x42m - 6 pcs Inside size : 380x380x3500mm Avaliable Capacity :50L | |
BWX-85L | External size: 610x610x620mm Internal size: 500x500x500mm Capacity :125L | PCM :47.7x24x2.5cm - 12 pcs Inside size : 440x440x440mm Avaliable Capacity :85L | |
BWX-90L | External size: 760x540x600mm Internal size: 630x415x475mm Capacity :124L | PCM : 46.5x31.7x2.5cm - 4pcs 46x41.2x2.5cm - 2pcs 41.2x31.4x2.5cm - 4pcs Inside size : 580x365x425mm Avaliable Capacity :90L | |
PU insulation material for 48 hours transport The core material can be flexible to be PU foaming or VPU panels according to customers' thermal requirements ! PU +vip insulation material can hold 72 hours, 96 hours,even 120 hours The following is the recommended solution according to the requirements | |||
